Ultra 80

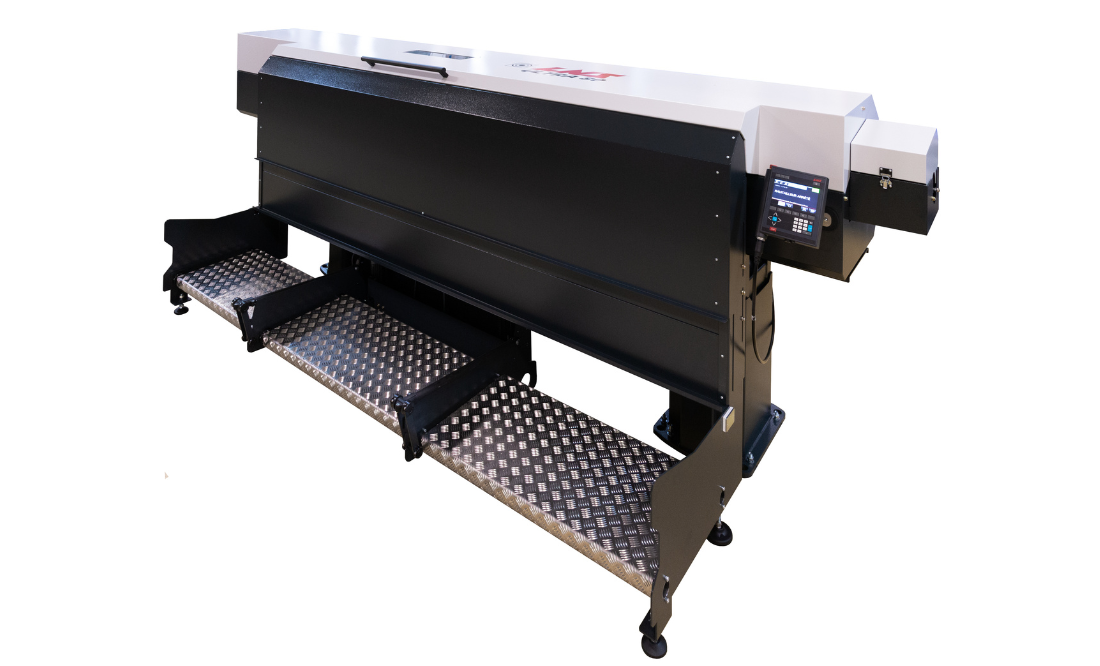

LNS ULTRA 80

AUTOMATIC BAR FEEDING SYSTEM FOR
FIXED HEADSTOCK LATHES

Diameter range: 8–80 mm












Beskrivning

Ultra 80 PDF
INNOVATION FOR THE HIGHEST GUIDING PERFORMANCE                                                                                                                    The main beam consists of 700 kg mineral casting, a preferred material used for high quality drilling, turning and grinding machines. Its high damping properties and a strong structural stiffness allow the barfeeder to run any bars to the optimal speed and guarantees the maximum productivity during the machining process. Thanks to the breveted manufacturing process of the beam, a very accurate positioning of the functional elements on the core beam and the long-term stability of the material ensures high operational reliability.
HIGH-QUALITY ADAPTIVE SUPPORT WHERE IT IS NECESSARY                                                                                                               A revolutionary, very rigid front rest that adapts to the bar within a wide diameter range is installed as the last guiding zone before the bar enters the lathe’s spindle. Providing a length of 400 mm and working within a 20 mm range for each guiding element by shape changing, the diameter range can be quickly readjusted by simply inserting a new guiding element in the installed ones. A significant oil supply further enhances the guiding effect.

Bonthron & Ewing AB is LNS representative for Sweden. Latvia. Estonia and Lithuania
